Motion sensor quick install guide

getting started


To open your nowe  Motion sensor turn the back cover counterclockwise

powering UP

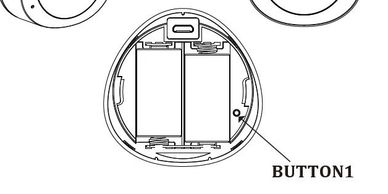

Insert the batteries (CR123A) provided, and press BUTTON1


If the LED light flashes BLUE, the device is working fine, if not, please check or replace batteries.

LED flashing light


Understanding the flashing lights.


In the event of a trigger, the LED light will flash either BLUE if connected to your Wi-Fi, or PURPLE if there is no Wi-Fi connection.

Wi-Fi pairing


Press and hold down BUTTON1 for 5 seconds it will now enter your nowe  Motion Sensor into pairing mode. The LED light will default to blink rapidly and is ready to be connected to your Wi-Fi.

installing


We suggest either method of screwing-in  or using 3M double-sided tape to mount the nowe  Motion sensor to desired locations

mounting

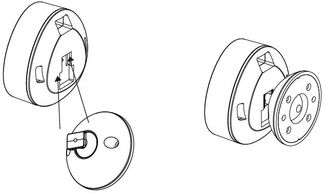

Attach your nowe  Motion sensor to the 360° swivel base and you're in business

nowe Motion sensor

LED Bulb quick install guide

getting started


WARNING - CAUTION: DANGER OF ELECTROCUTION RISK of SHOCK or BURNS - USE IN A DRY LOCATION ONLY.


Ensure that the light switch is turned OFF  before installing your nowe  Bulb.

powering UP


Once your nowe  Bulb has been attached and powered, your bulb will default to a blinking rapidly mode.

flashing lights/ Wi-Fi pairing


 If your nowe  Bulb doesn't enter straight into pairing mode blinking  rapidly, switch the light ON/OFF consecutively (3) times.


Once you've achieved the blinking rapidly mode, it means that you're ready to connect your Bulb to your home's Wi-Fi and your iHAS app. Enjoy!

nowe Bulb

SMART sensor quick install guide

getting started


To open your nowe  SMART sensor, use the release button located on the top of the unit to pull off the back covering.

powering UP


Insert the batteries (2 X AAA) provided and press BUTTON1


If the LED light flashes BLUE, the device is working fine, if not, please check or replace batteries.

LED flashing light


Understanding the flashing lights.


In the event of a trigger or tamper, the LED light will flash either BLUE if connected to your Wi-Fi, or PURPLE if there is no Wi-Fi connection.

Wi-Fi pairing


Pressing and holding BUTTON1 for 5 seconds will enter your nowe  SMART into pairing mode. The LED light will default to blink rapidly and is ready to be connected to your Wi-Fi.

installing


We suggest either method of screwing-in or using double-sided 3M tape (provided) to mount the nowe  SMART Sensor to walls, doors, windows or even drawers.

mounting


To install correctly, ensure that the triangular marks (on front face of product) are facing  each other.


Also, ensure that the distance between the central sensor unit and the magnet is NOT greater than 10mm.

nowe SMART Sensor
